异化二维码<渐变色圆形液化>-3-液化

循序渐进地在安卓native端实现了渐变色圆形液化二维码，本章是第三章（最后一章）。

本文主要在Android平台基于zxing实现了 “渐变色圆形液化” 效果二维码

1. 效果

1.1 期望效果

草料二维码平台生成的这种

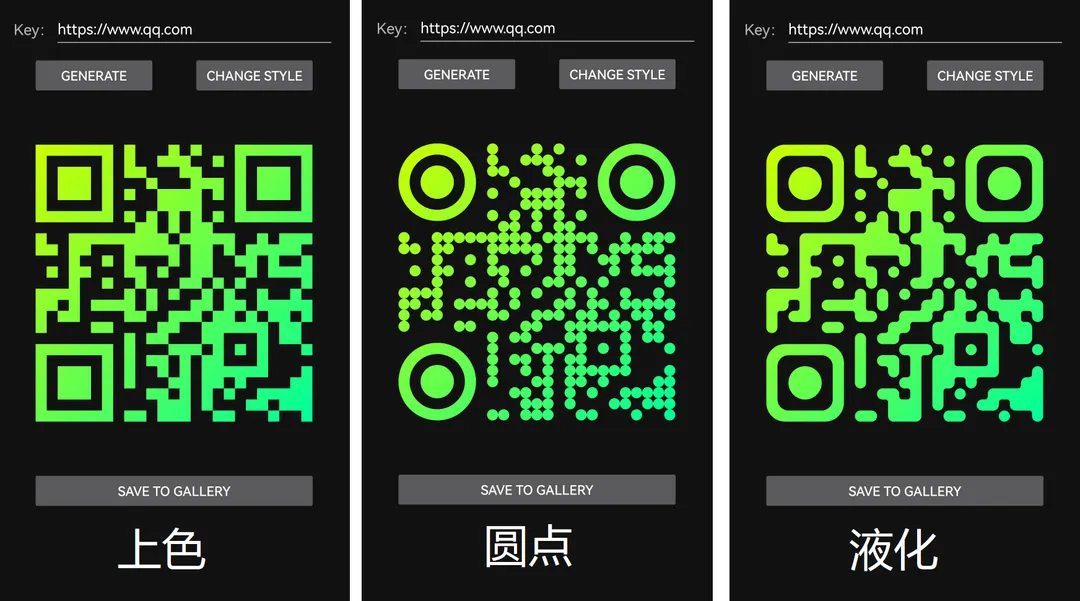

1.2 最终效果

2. 背景

2.1 二维码

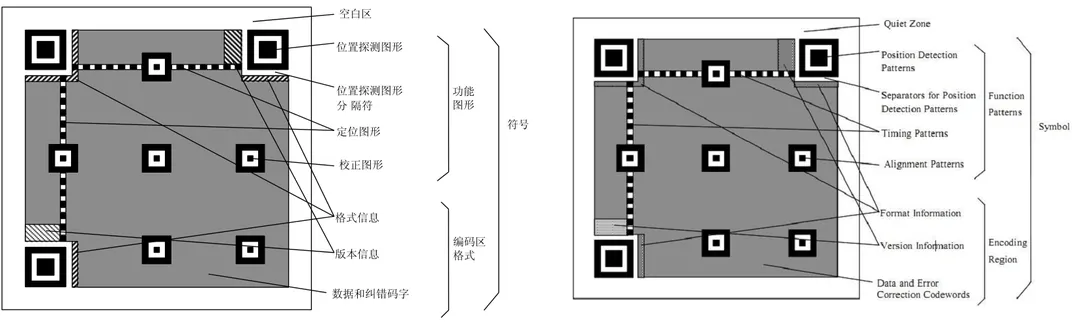

从二维码的组成开始看

定位图案
- Position Detection Pattern 是定位图案，用于标记二维码的矩形大小。这三个定位图案有白边叫Separators for Postion Detection Patterns，用作分割。
- Timing Patterns 用于定位的。原因是二维码有40种尺寸，尺寸过大了后需要有根标准线，防止扫描歪了。
- Alignment Patterns 只有Version 2以上（包括Version2）的二维码需要，为了定位用的。
功能性数据
- Format Information 存在于所有的尺寸中，用于存放一些格式化数据的。
- Version Information 在 >= Version 7以上，需要预留两块3 x 6的区域存放一些版本信息。
数据码和纠错码
- 剩下的地方存放 Data Code 数据码和 Error Correction Code 纠错码。

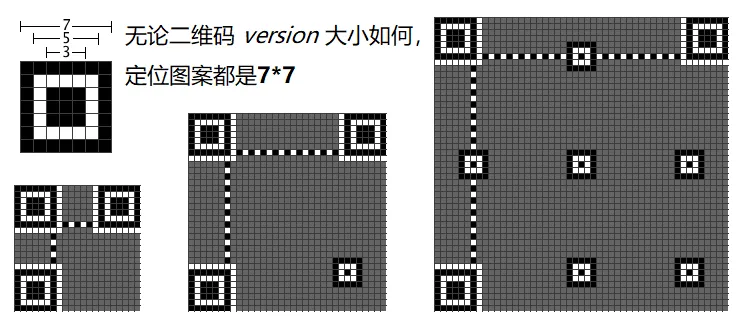

其中，二维码有不同的尺寸（又称作version），version范围1～40，尺寸大小为 size = (v-1)*4 + 21。需要注意的是，定位图案大小固定是 7*7。

2.2 zxing 库

zxing是一个开源的，用Java实现的多种格式的1D/2D条码图像处理库，包含了联系到其他语言的端口。zxing可以实现使用手机的内置的摄像头完成条形码的扫描及解码。

具体使用方法这里不再赘述。

3. 实现

因为要异化图片显示，这里全部使用了自绘。

3.1 矩阵生成

自绘需要得知哪些点命中显示，哪些点命中不显示。这里使用 zxing 库提供的接口，生成二维矩阵。

X X X X X X X   X       X   X       X X X X X X X
X           X   X     X X X     X   X           X
X   X X X   X   X X       X X       X   X X X   X
X   X X X   X       X       X X X   X   X X X   X
X   X X X   X   X     X X X X   X   X   X X X   X
X           X         X X X X       X           X
X X X X X X X   X   X   X   X   X   X X X X X X X
                  X X   X   X X
X     X X X X X X X X X   X X X X X     X   X X X
X X   X X       X X X X X   X X   X   X X X X X
      X     X   X       X   X X     X X   X     X
  X   X X       X X   X     X X       X   X X X X
      X     X     X       X X   X   X           X
X X X X         X   X   X     X   X     X     X
X X   X   X X X X   X       X X   X X   X X X X X
X   X X         X X     X X X   X X   X   X X   X
X         X X         X X     X X X X X X   X X
                X   X X       X X       X   X X
X X X X X X X   X       X X X   X   X   X       X
X           X   X   X X   X   X X       X
X   X X X   X   X     X   X   X X X X X X       X
X   X X X   X   X       X X   X X   X         X X
X   X X X   X       X X   X   X   X     X X X X X
X           X         X X X   X       X X   X X X
X X X X X X X   X X   X X X     X X       X     X

代码实现

    private static BitMatrix createBitMatrix(String content, int size) throws WriterException {
        QRCodeWriter qrCodeWriter = new QRCodeWriter();
        //定义属性
        HashMap<EncodeHintType, Object> hintTypeStringMap = new HashMap<>();
        hintTypeStringMap.put(EncodeHintType.MARGIN, 0);
        hintTypeStringMap.put(EncodeHintType.CHARACTER_SET, "utf8");
        hintTypeStringMap.put(EncodeHintType.ERROR_CORRECTION, ErrorCorrectionLevel.M);//设置最高错误级别
        if (size > 0) {
            hintTypeStringMap.put(EncodeHintType.MAX_SIZE, size / 5); //设置最大值
            hintTypeStringMap.put(EncodeHintType.MIN_SIZE, size / 10); // 设置最小值
        }
        return qrCodeWriter.encode(content, BarcodeFormat.QR_CODE, size, size, hintTypeStringMap);
    }

3.2 上渐进色

如果只是上渐进色，不涉及自行用画布绘制的话，可以生成目标size大小的矩阵，在生成bitmap前根据startColor、endColor ，循环遍历每个点，根据偏移量直接计算得到各个点的色值即可。

    // 渐变色二维码
    @Nullable
    public static Bitmap generateColorfulBitmap(String content, int size, Color startColor, Color endColor) {
        try {
            BitMatrix bitMatrix = createBitMatrix(content, size);
            int[] arr = new int[size * size];
            for (int i = 0; i < size; i++) {
                for (int j = 0; j < size; j++) {
                    if (bitMatrix.get(i, j)) {
                        int r = (int) (255 * (startColor.red() - (startColor.red() - endColor.red()) / size * (j + 1)));
                        int g = (int) (255 * (startColor.green() - (startColor.green() - endColor.green()) / size * (j + 1)));
                        int b = (int) (255 * ((startColor.blue() - (startColor.blue() - endColor.blue()) / size * (j + 1))));
                        int colorInt = Color.argb(255, r, g, b);
                        arr[i * size + j] = colorInt;
                    } else {
                        arr[i * size + j] = Color.TRANSPARENT;
                    }
                }
            }
            return Bitmap.createBitmap(arr, size, size, Bitmap.Config.ARGB_8888);
        } catch (WriterException e) {
            e.printStackTrace();
        }
        return null;
    }

3.3 圆点风格

对于渐变色，对于画笔 Paint 设置 LinearGradient 渐变色类型的 Shader；
对于内部各个点，找到中心坐标，然后直接绘圆；见drawInnerLittleDot()。
对于周边三处定位点，依次绘制7*7(带颜色), 5*5(不带颜色), 3*3(带颜色)的圆；见drawOneDetectPositionDotImpl()。

    // 圆点二维码
    @Nullable
    public static Bitmap generateDotBitmap(String content, int size, Color startColor, Color endColor) {
        try {
            BitMatrix bitMatrix = createBitMatrix(content, 0);
            Bitmap qrCodeBitmap = Bitmap.createBitmap(size, size, Bitmap.Config.ARGB_8888);
            drawDotBitMapImpl(qrCodeBitmap, bitMatrix, size, startColor, endColor);
            return qrCodeBitmap;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    private static void drawDotBitMapImpl(Bitmap qrCodeBitmap, BitMatrix bitMatrix, int size, Color startColor, Color endColor) {
        Canvas canvas = new Canvas(qrCodeBitmap);
        Paint paint = new Paint();
        paint.setAntiAlias(true);
        paint.setShader(new LinearGradient(0f, 0f, (float) size, (float) size, startColor.toArgb(), endColor.toArgb(), Shader.TileMode.CLAMP));

        drawInnerLittleDot(canvas, paint, bitMatrix, size);
        drawOuterDetectPositionBigDot(canvas, paint, bitMatrix, size);
        canvas.drawBitmap(qrCodeBitmap, null, new Rect(0, 0, size, size), null);
    }

    // 绘制三个定位角以外的小圆点们
    private static void drawInnerLittleDot(Canvas canvas, Paint paint, BitMatrix bitMatrix, int size) {
        int matrixSize = bitMatrix.getWidth();
        float dotSize = size / (float) matrixSize;
        float dotRadius = dotSize / 2;
        float curDotCenterX, curDotCenterY;

        for (int row = 0; row < matrixSize; row++) {
            for (int column = 0; column < matrixSize; column++) {
                if (!bitMatrix.get(row, column)) {
                    continue;
                }
                if (row <= 6 &amp;&amp; column <= 6 || row <= 6 &amp;&amp; column >= matrixSize - 7 || row >= matrixSize - 7 &amp;&amp; column <= 6) {
                    // 左上角、右上角、左下角，不绘制小圆点
                    continue;
                }
                curDotCenterX = row * dotSize + dotRadius;
                curDotCenterY = column * dotSize + dotRadius;
                canvas.drawCircle(curDotCenterX, curDotCenterY, dotRadius, paint);
            }
        }
    }

    // 绘制三个定位角
    private static void drawOuterDetectPositionBigDot(Canvas canvas, Paint paint, BitMatrix bitMatrix, int size) {
        float perDotSize = size / (float) bitMatrix.getWidth();
        float totalRadius = perDotSize * 7 / 2;
        drawOneDetectPositionDotImpl(canvas, paint, totalRadius, totalRadius, perDotSize);
        drawOneDetectPositionDotImpl(canvas, paint, totalRadius, size - totalRadius, perDotSize);
        drawOneDetectPositionDotImpl(canvas, paint, size - totalRadius, totalRadius, perDotSize);
    }

    // 绘制单个定位角。实现是依次绘制三个圆，且内部覆盖外部
    private static void drawOneDetectPositionDotImpl(Canvas canvas, Paint paint, float dotCenterX, float dotCentY, float perDotSize) {
        Xfermode paintXfermode = paint.getXfermode();
        canvas.drawCircle(dotCenterX, dotCentY, perDotSize * 7 / 2, paint);

        // 重合的地方混合方式，显示空白
        paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));
        canvas.drawCircle(dotCenterX, dotCentY, perDotSize * 5 / 2, paint);

        paint.setXfermode(paintXfermode);
        canvas.drawCircle(dotCenterX, dotCentY, perDotSize * 3 / 2, paint);
    }

3.4 圆点液化

分析液化方式如下，需要改动3.3圆点风格drawInnerLittleDot()、drawOuterDetectPositionBigDot的代码实现。

3.4.1 边角定位点

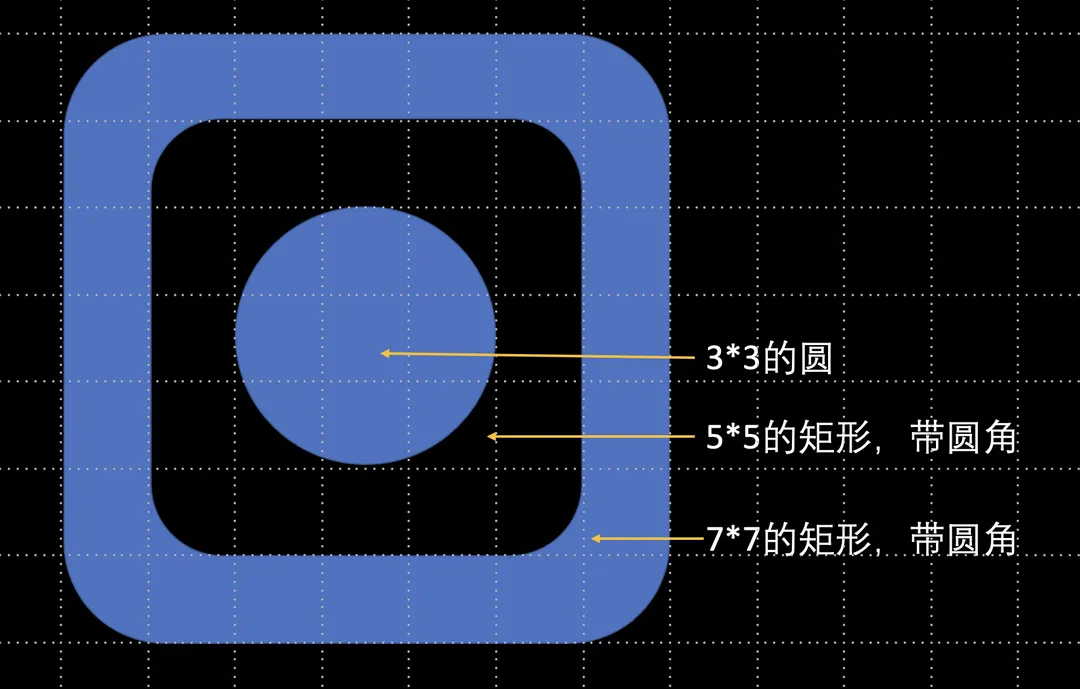

定位点大小7*7，不再是简圆环套圆，而改成了圆角正方形套圆。可以分成下图 3 个部分，依次绘制即可。

代码实现

    // 绘制三个定位角
    private static void drawOuterDetectPositionBigDot(Canvas canvas, Paint paint, BitMatrix bitMatrix, int size) {
        float perDotSize = size / (float) bitMatrix.getWidth();
        float totalRadius = perDotSize * 7 / 2;
        drawOneDetectPositionDotImpl(canvas, paint, totalRadius, totalRadius, perDotSize);
        drawOneDetectPositionDotImpl(canvas, paint, totalRadius, size - totalRadius, perDotSize);
        drawOneDetectPositionDotImpl(canvas, paint, size - totalRadius, totalRadius, perDotSize);
    }

    // 绘制单个定位角。实现是依次绘制三个圆，且内部覆盖外部
    private static void drawOneDetectPositionDotImpl(Canvas canvas, Paint paint, float dotCentX, float dotCentY, float perDotSize) {
        Xfermode paintXfermode = paint.getXfermode();
        float maxRadius = perDotSize * 7 / 2;
        canvas.drawRoundRect(dotCentX - maxRadius, dotCentY - maxRadius, dotCentX + maxRadius, dotCentY + maxRadius,
                (float)( perDotSize * 1.7), (float)( perDotSize * 1.7), paint);

        // 重合的地方混合方式，显示空白
        paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));
        float midRadius = perDotSize * 5 / 2;
        canvas.drawRoundRect(dotCentX - midRadius, dotCentY - midRadius, dotCentX + midRadius, dotCentY + midRadius,
                perDotSize, perDotSize, paint);

        paint.setXfermode(paintXfermode);
        canvas.drawCircle(dotCentX, dotCentY, perDotSize * 3 / 2, paint);
    }

3.4.2 内部各个点

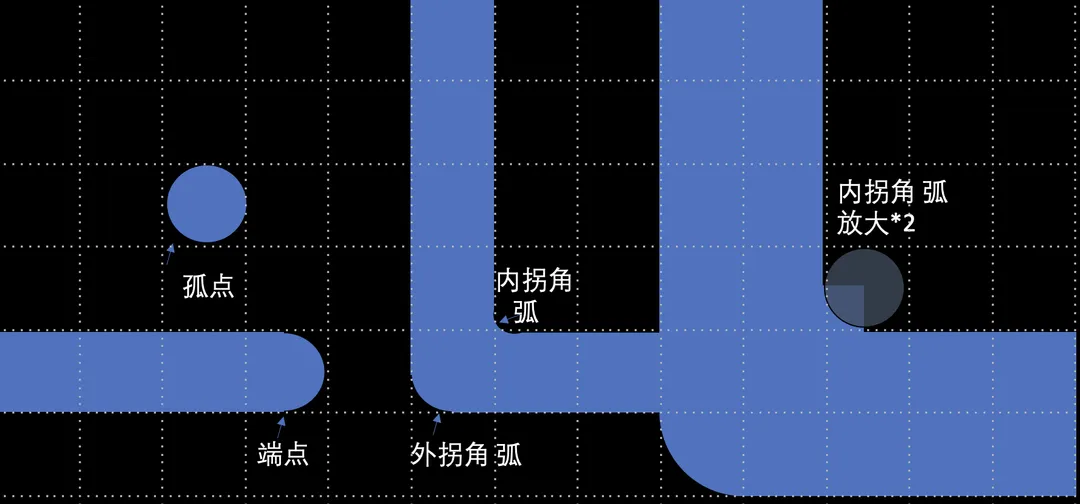

假设二维码每个点的大小为dotWidth:

孤立的点仍是直径为dotWidth的圆。
端点、外拐角弧是直径为dotWidth的圆与 1-4个长dotWidth、宽dotWidth/2的矩形的全部。
内拐角孤，是边长dotWidth/4的正方形，剔除掉直径dotWidth/2的圆重合的部分。

代码实现

 // 绘制三个定位角以外的小圆点们
    private static void drawInnerLittleDot(Canvas canvas, Paint paint, BitMatrix bitMatrix, int size) {
        int matrixSize = bitMatrix.getWidth();
        float dotSize = size / (float) matrixSize;
        float dotRadius = dotSize / 2;
        float curDotCenterX, curDotCenterY;

        for (int column = 0; column < matrixSize; column++) {
            for (int row = 0; row < matrixSize; row++) {
                if (column <= 6 &amp;&amp; row <= 6 || column <= 6 &amp;&amp; row >= matrixSize - 7
                        || column >= matrixSize - 7 &amp;&amp; row <= 6) {
                    // 左上角、右上角、左下角，不绘制小圆点
                    continue;
                }
                curDotCenterX = column * dotSize + dotRadius;
                curDotCenterY = row * dotSize + dotRadius;
                if (bitMatrix.get(column, row)) {
                    boolean needDrawCircle = drawRectWhenNeeded(canvas, paint, bitMatrix, curDotCenterX, curDotCenterY, dotRadius, column, row);
                    if (needDrawCircle) {  // 如果矩形已经画满这个点，就没必要再画圆了。
                        canvas.drawCircle(curDotCenterX, curDotCenterY, dotRadius, paint);
                    }
                } else {
                    drawRoundEdgeWhenNeeded(canvas, paint, bitMatrix, curDotCenterX, curDotCenterY, dotRadius, column, row);
                }
            }
        }
    }

    /**
     * 绘制矩形
     *
     * @return 是否还要绘制圆形
     */
    private static boolean drawRectWhenNeeded(Canvas canvas, Paint paint, BitMatrix bitMatrix, float centX, float centY,
                                              float dotRadius, int column, int row) {
        int matrixSize = bitMatrix.getWidth();
        boolean isLeftEmpty = column == 0 || !bitMatrix.get(column - 1, row);
        boolean isRightEmpty = column == matrixSize - 1 || !bitMatrix.get(column + 1, row);
        boolean isTopEmpty = row == 0 || !bitMatrix.get(column, row - 1);
        boolean isBottomEmpty = row == matrixSize - 1 || !bitMatrix.get(column, row + 1);
        if (!isLeftEmpty &amp;&amp; !isRightEmpty || !isTopEmpty &amp;&amp; !isBottomEmpty) {
            canvas.drawRect(centX - dotRadius, centY - dotRadius, centX + dotRadius, centY + dotRadius, paint);
            return false;
        }

        if (!isLeftEmpty) {
            canvas.drawRect(centX - dotRadius, centY - dotRadius, centX, centY + dotRadius, paint);
        }
        if (!isRightEmpty) {
            canvas.drawRect(centX + dotRadius, centY - dotRadius, centX, centY + dotRadius, paint);
        }

        if (!isTopEmpty) {
            canvas.drawRect(centX - dotRadius, centY - dotRadius, centX + dotRadius, centY, paint);
        }
        if (!isBottomEmpty) {
            canvas.drawRect(centX - dotRadius, centY + dotRadius, centX + dotRadius, centY, paint);
        }
        return true;
    }

    // 需要时，绘制矩形与圆重合，矩形有、圆没有的部分。适用于"L"这种拐角内部，拐角内部画个弧度
    private static void drawRoundEdgeWhenNeeded(Canvas canvas, Paint paint, BitMatrix bitMatrix, float centX, float centY,
                                                float dotRadius, int column, int row) {
        int matrixSize = bitMatrix.getWidth();
        float halfDotRadius = dotRadius / 2;
        boolean isLeftEmpty = column == 0 || !bitMatrix.get(column - 1, row);
        boolean isTopEmpty = row == 0 || !bitMatrix.get(column, row - 1);
        boolean isRightEmpty = column == matrixSize - 1 || !bitMatrix.get(column + 1, row);
        boolean isBottomEmpty = row == matrixSize - 1 || !bitMatrix.get(column, row + 1);

        boolean isLeftTopEmpty = row == 0 || column == 0 || !bitMatrix.get(column - 1, row - 1);
        boolean isLeftBottomEmpty = row == matrixSize - 1 || column == 0 || !bitMatrix.get(column - 1, row + 1);
        boolean isRightTopEmpty = row == 0 || column == matrixSize - 1 || !bitMatrix.get(column + 1, row - 1);
        boolean isRightBottomEmpty = row == matrixSize - 1 || column == matrixSize - 1 || !bitMatrix.get(column + 1, row + 1);

        if (!isLeftTopEmpty &amp;&amp; !isLeftEmpty &amp;&amp; !isTopEmpty) {
            RectF rectF = new RectF(centX - dotRadius, centY - dotRadius, centX - halfDotRadius, centY - halfDotRadius);
            drawRectWithCircleClear(canvas, paint, rectF, centX - halfDotRadius, centY - halfDotRadius, halfDotRadius);
        }
        if (!isLeftBottomEmpty &amp;&amp; !isLeftEmpty &amp;&amp; !isBottomEmpty) {
            RectF rectF = new RectF(centX - dotRadius, centY + halfDotRadius, centX - halfDotRadius, centY + dotRadius);
            drawRectWithCircleClear(canvas, paint, rectF, centX - halfDotRadius, centY + halfDotRadius, halfDotRadius);
        }
        if (!isRightTopEmpty &amp;&amp; !isRightEmpty &amp;&amp; !isTopEmpty) {
            RectF rectF = new RectF(centX + halfDotRadius, centY - dotRadius, centX + dotRadius, centY - halfDotRadius);
            drawRectWithCircleClear(canvas, paint, rectF, centX + halfDotRadius, centY - halfDotRadius, halfDotRadius);
        }
        if (!isRightBottomEmpty &amp;&amp; !isRightEmpty &amp;&amp; !isBottomEmpty) {
            RectF rectF = new RectF(centX + halfDotRadius, centY + halfDotRadius, centX + dotRadius, centY + dotRadius);
            drawRectWithCircleClear(canvas, paint, rectF, centX + halfDotRadius, centY + halfDotRadius, halfDotRadius);
        }
    }

    // 绘制矩形与圆重合，矩形有、圆没有的部分。适用于"L"这种拐角内部，拐角内部画个弧度
    private static void drawRectWithCircleClear(Canvas canvas, Paint paint, RectF rectF, float centX, float centY, float radius) {
        canvas.drawRect(rectF, paint);
        Xfermode paintXfermode = paint.getXfermode();
        paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));
        canvas.drawCircle(centX, centY, radius, paint);
        paint.setXfermode(paintXfermode);
    }

本章完结
